Nexus 21 XL85S

Technical Drawing	Spec Sheet	Assembly Instruction

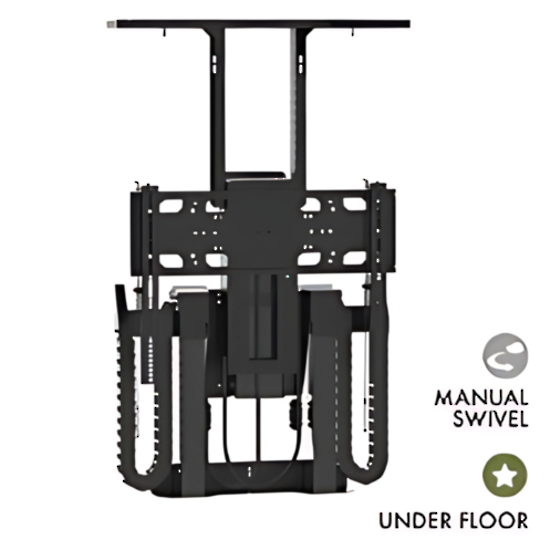

Model XL-85s is designed for maximum extension, raising up to 86” screens from beneath the floor. This lift travels up to 65” smoothly and quietly in as little as 27 seconds. It also features a 360-degree manual-swivel function, allowing you to face the screen anywhere in the room.

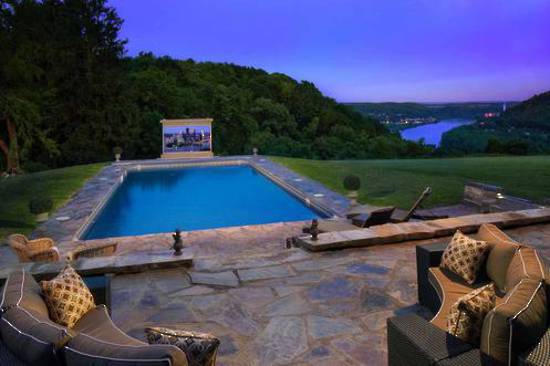

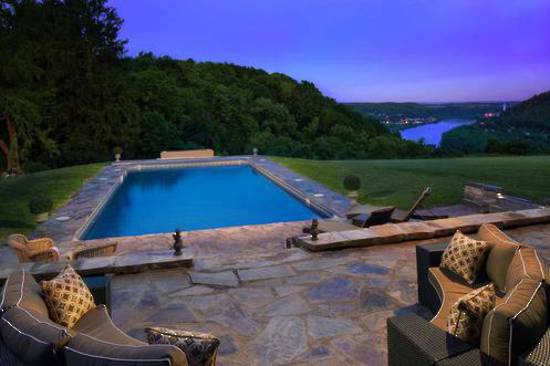

Popular uses: In large living-room or outdoor cabinets, or wherever a large screen is needed.


Technical Specifications:

• 175 lbs weight capacity
• Travels 65″
• Fully extends in 27 – 45 seconds depending on weight load
• Quiet operation at just 50 dB
• Choice of RF remote, Control System Integration Kit (includes IR remote and contact closure interface), or IP control device
• All Nexus 21 products include controllers that work with all voltages from 110V to 240V. The following plug styles are available:

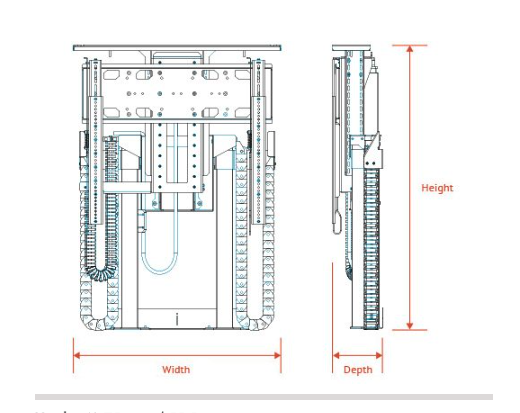

• Height: 40.75″ min / 55.5″ max
• Width: 27.5″
• Depth: 7.5″ from back wall to rear of TV

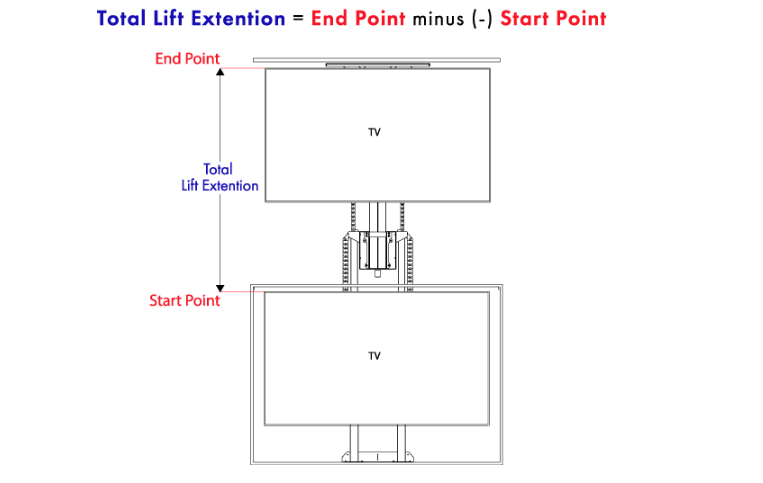

Measuring Lift Extension for All Nexus 21 Pop Up TV Lifts

Controls

Nexus 21 products include a handheld remote control, and also easily integrate with any home control system by way of IR, IP or contact closure.
