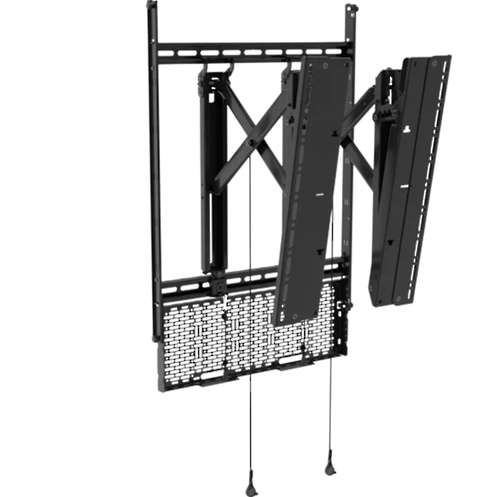

Chief AS3PM

In digital signage and DOOH advertising, every minute of downtime means lost revenue and frustrated customers – yet traditional mounts often make maintenance slow and complex.

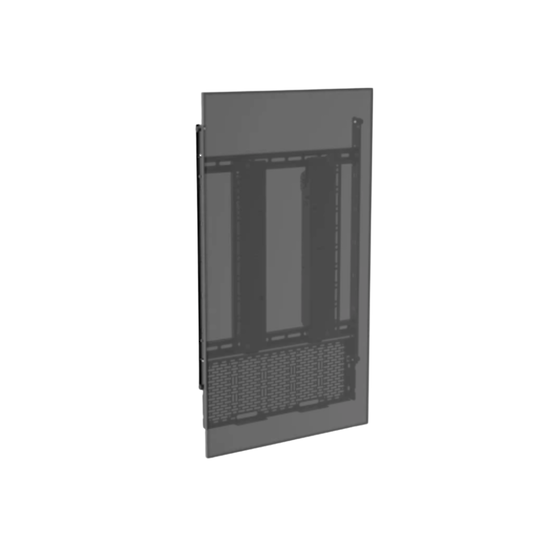

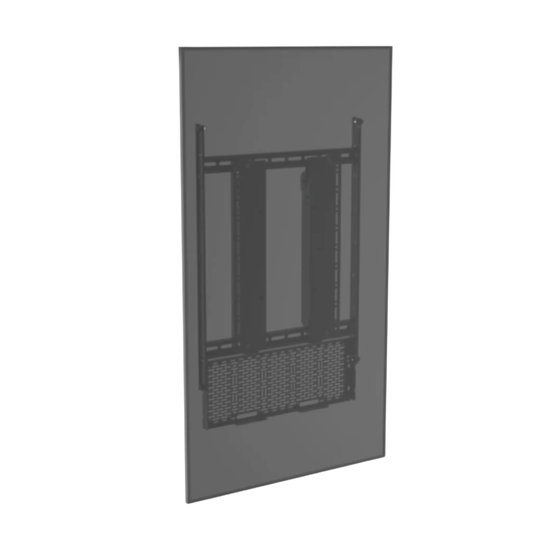

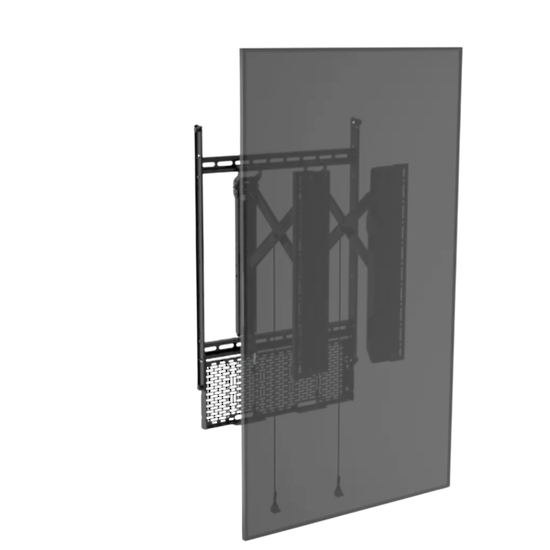

Tempo™ Portrait is the ultimate wall-mount solution for digital signage, purposefully designed to streamline installation, simplify service and maximize uptime.

Built with installer feedback and engineered for efficiency, it integrates a secure display mount with built-in storage and cable management to reduce clutter and streamline AV setups. Its innovative design features tool-less access and a 10.65" (27 cm) service extension for a total service depth of 12.6” (32 cm), allowing a single technician to reach devices quickly and safely without removing the display. The result? Faster installs, easier maintenance, and maximum uptime – so your content stays live, your operations run smoothly, and your ROI stays strong.

Simplify Service

• 12.6" (320 mm) of service depth and 10.6" (269 mm) of service extension

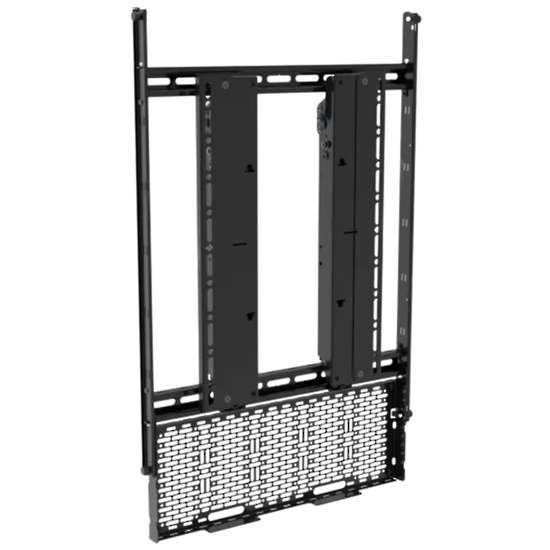

• Open wall plate for easy positioning of power and data sources and in-wall storage
• Home latch lockout clip prevents home latch from accidentally locking until pull cords are properly stowed

Product Features

• UL Listed for all common substrates – wood studs, steel studs, concrete, or block walls – Tempo ensures strength and reliability in any installation
• Storage panels can be pre-loaded with AV devices offsite for a truly streamlined installation experience – eliminating any surprises at the jobsite and ensuring peace of mind

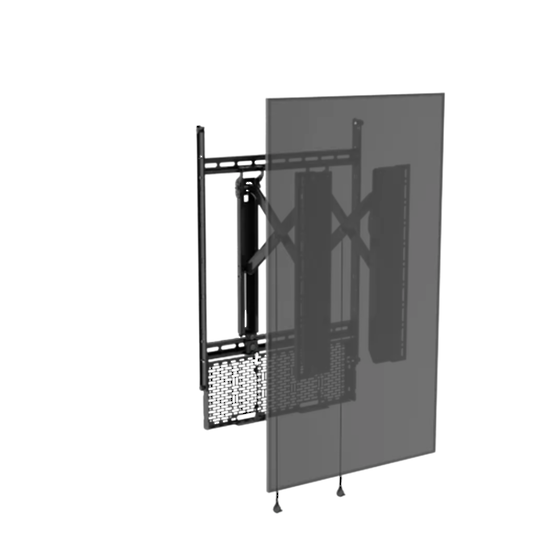

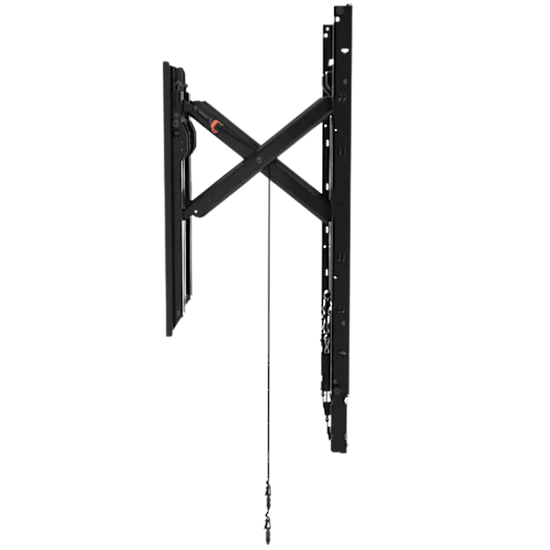

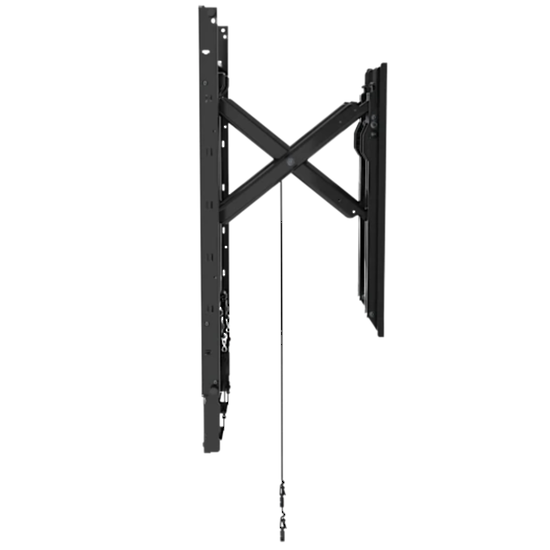

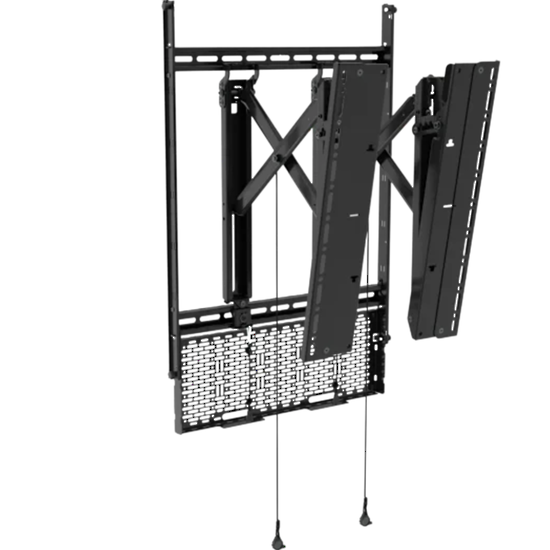

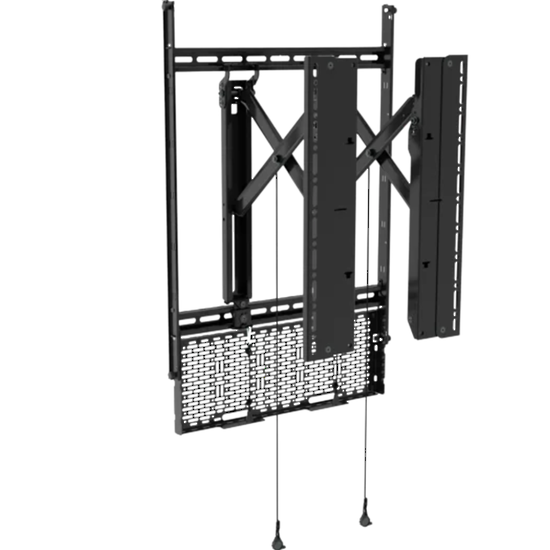

• The pullout mechanism for service mode ensures ample access to stored devices, and consistently returns to its home position for uniform alignment across multiple displays
• Single-technician accessibility saves labor costs on maintenance calls and ensures quick service for clients, which maximizes valuable digital signage uptime
• Lockout clip prevents the home latch from accidentally locking until pull cords are properly stowed
• Technicians can lock the display in service mode with the lockout tab feature on the magnetic pull cord
• One part number, one box, one order – minimize last-minute shipping costs of missing parts

Feature Flexibility

• Wall plate and extending interface design facilitates centering display in the right position

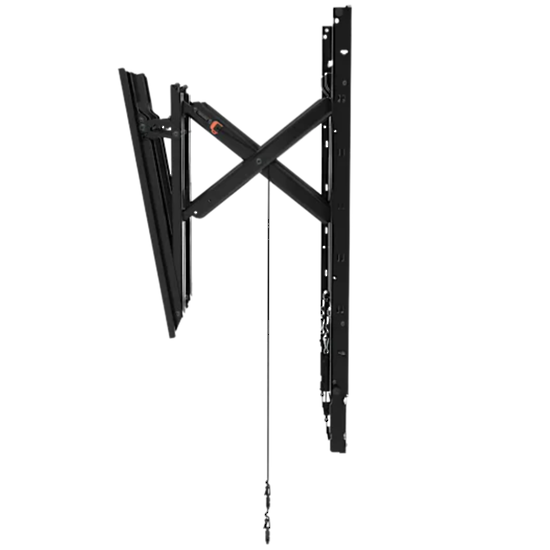

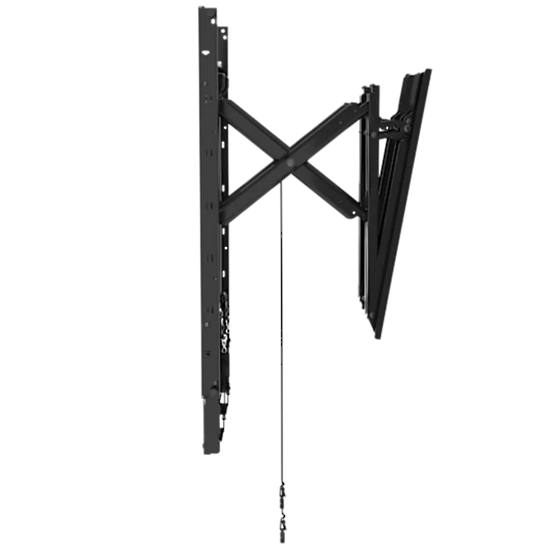

• 10° of adjustable display tilt in 2.5° increments

Streamlined for Success

• Total installation depth facilitates ADA compliance (when display depth is less than 2” / 51 mm)
• Up to 1" (25 mm) post-install leveling adjustment
• UL Listed

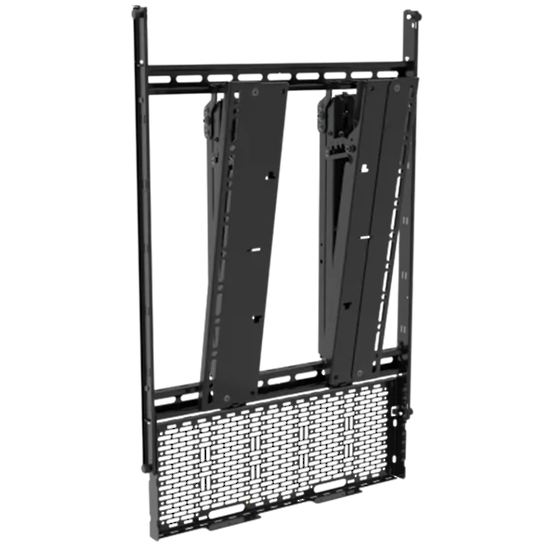

Integrated Storage

• Includes one 18.07” x 6.72” (459 x 171 mm) storage plate; second plate is optional
• Storage plate features quick release pins and can be installed on the top or bottom for best placement of devices
• Storage plate allows for 1 RU, 1.75" (44 mm) of storage clearance between the back of the display and the storage panel at 0-degree tilt

• Lateral Shift: Yes
• Overall Dimensions: 19.56" x 29.99" x 1.96" (497 x 762 x 50 mm)
• Typical Screen Size: 38" - 50" (965 mm - 1270 mm)
• Wall Stud Compatibility: 16” O.C.
• Weight Capacity: 75 lbs (34 kg)

• Adjustability:
  • Fixed
  • Lateral Shift
  • Micro-Adjustable
  • Tilt
• Application: Wall
• Color: Black
• Includes PDU: No
• Orientation: Portrait
• Post-Installation Leveling Roll: 1" (25 mm)
• Solution Type: Universal
• Special Features: ADA Compliant
• TAA Compliant: No
• Tilt: -10° / +0° in 2.5° increments
• UPC: 841872179056
• VESA Mounting Pattern: 200 x 200mm - 400 x 450mm
