Chief RXT2

Installation Manual	Technical Drawing

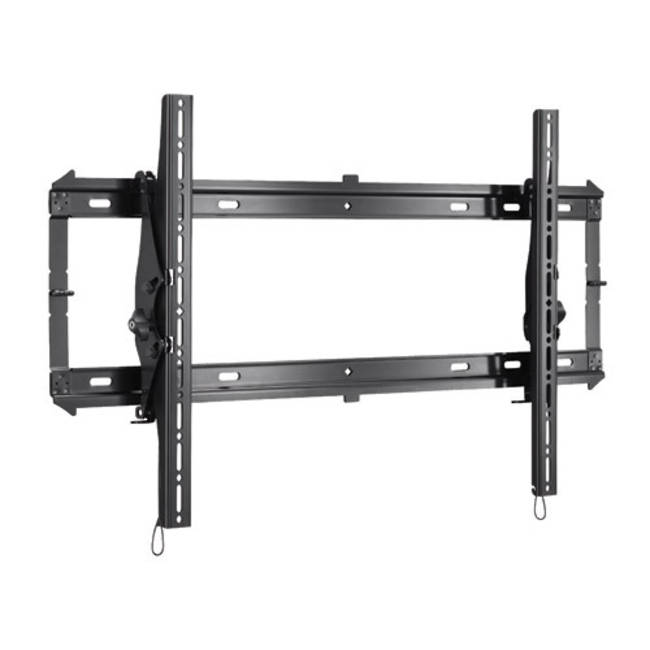

The RXT2 tilt wall mount features a unique hinged design and low-profile depth.


Features:

• Provides low-profile, fingertip tilt
• Hinged design reduces packaging material
• Wide open wall plate allows for easy cable routing and connection
• GlideLock with Kickstand secures TV to wall plate without tools and includes kickstand for easy cable connection
• Optional storage box provides a clean installation (PAC522, PAC521P)
• Steel stud mounting possible with series PAC115 and using 2 studs only

Product Specifications:

• Certifications: TÜV Certified, UL Listed
• Color: Black
• Lateral Shift: Depends on mounting pattern of screen
• Maximum Screen Thickness: 6"
• Minimum Depth: 1.96" (49.8mm)
• Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 910 x 500mm
• Notes: Steel stud mounting possible with series PAC115 and using 2 studs only
• Orientation: Landscape
• Overall Dimensions (H x W x D): 20.5" x 38.0" x 2.0" (521 x 965 x 50mm)
• Shipping Weight: 7 kg
• Solution Type: Universal
• Tilt: + 0° , - 12°
• Typical Screen Sizes: 40 - 80"
• Wall Stud Compatibility (inches): 16, 24
• Weight Capacity: 175 lbs (79.4kg)
