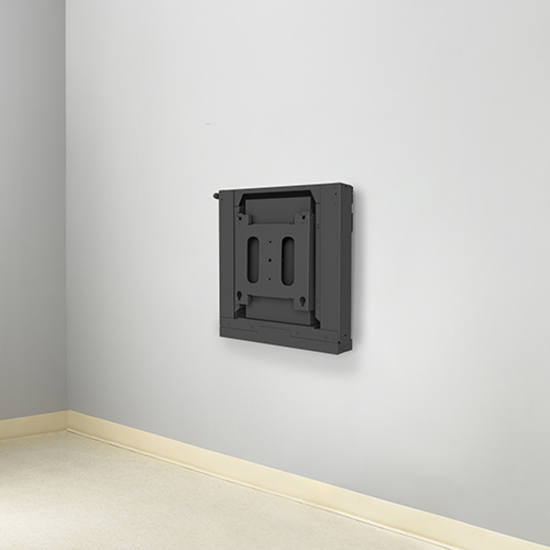

Chief XSD1U

Extra Large Fusion Dynamic Height Adjustable Wall Mount
Product Downloads
pdficon small Installation Manual pdficon small Technical Drawing

Ideal for interactive applications, this solution comes with electric height adjust capability to create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides 26” (660 mm) of vertical lift.

Easy to install. Easy to adjust.


  • Accommodates typical large displays between 50-80" up to 310 lbs (140.6 kg) with VESA® 200 x 200 – 860 x 510 mm
  • Anti-collision sensor immediately halts, then reverses motion of display upon encountering an obstruction to avoid pinching fingers or damaging technology
  • ControlZone for post-installation fine-tuning of height and leveling
  • Ships fully assembled
  • Integrated cable management and strain relief protects traveling cable from disconnecting
  • Control pad included. Optional accessories sold separately; Remote Control Kit PACREM (includes remote and Bluetooth™ dongle) or choose Bluetooth Dongle PACBLU to access phone app
  • A full line of accessories can be installed with mount, including shelves, padlock and speaker adapters

Product Specifications:

  • Adjustments: Leveling adjustment: up to 1.5” (38mm)
  • Colour: Black
  • Mounting Pattern Compatibility (Universal Versions): 200x200 – 860x510mm
  • Notes: Vertical lift: 26” (660mm)
  • Typical Screen Sizes: 50 - 80"
  • Weight Capacity: 310 lbs (140.6 kg)
